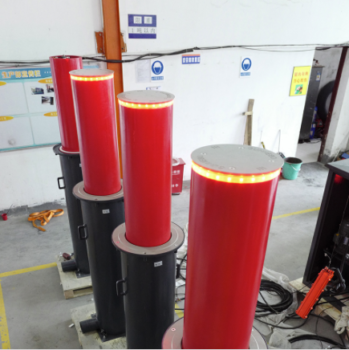

Hydraulic automatic bollard (Separated hydraulic unit)–PAS68 rated

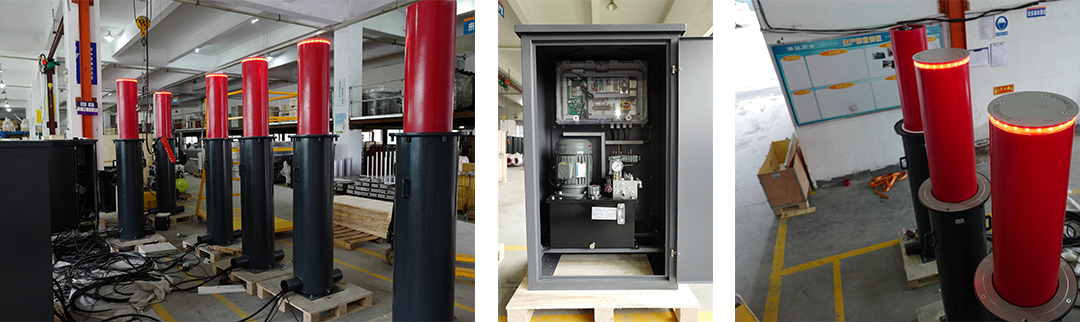

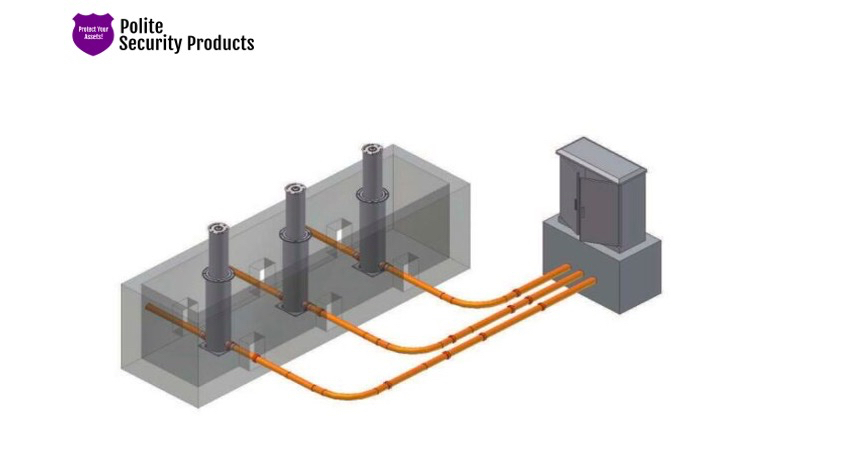

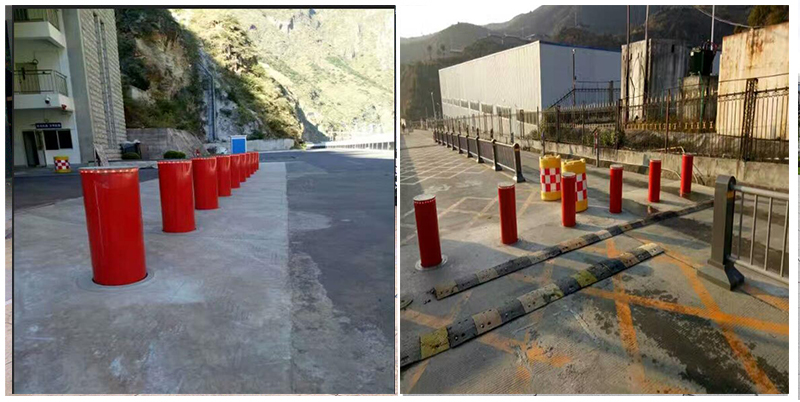

Polite Security Products hydraulic automatic bollard (Separated hydraulic unit) is designed for high level security (M50). The driven hydraulic unit is in a separated lockable metal cabinet. Max distance between hydraulic unit cabinet and bollard is 20M. It is the best choice to protect peoples and property against hostile vehicles. Hostile vehicles can not pass whilst bollards are no obstacles for pedestrians. Application area: embassy, military base, country boarder crossing, prison and other sensitive area where needs high level security protection. Bollards can be operated by remote controller, push button, card reader and other existing access control system.
Features:
Voltage | 380V 50Hz |
Diameter | 275mm;T:25mm/ T=thickness |
Blocking Height | 600mm / 900mm |
Cylinder material | Carbon steel / 304SS / 316SS |
Bollard pit material | Carbon steel |
Surface treatment | Carbon steel: Galvanization and powder coated (color can be customized according to RAL No.) Stainless steel: Hairline polish |
Rising speed | 15cm/S |
Lowing speed | 15cm/S |
Impact resistance | 1600Kg |
IP | 67 |

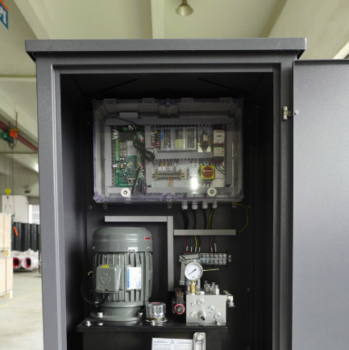

Hydraulic unit | Separated hydraulic unit |
Working temperature | -40 ℃–+70 ℃ |
Frequency use | High intensive |
Reflective tape | One 3M diamond series reflective, customized logo is available |
LED light | Red LED light |
Accessories | Remote controller, push button, loop detector, photocell, buzzer, traffic light, heater can be optional |
